Compact Material Handling Equipment for Jobsite Logistics and Earthmoving

Contractors and facility operators in landscaping, agricultural logistics, and commercial site preparation frequently face productivity losses when navigating confined access points while attempting to handle heavy palletized and bulk materials. To eliminate the performance trade-offs between maneuverability and heavy payload handling, New Holland Construction has expanded its compact equipment portfolio by introducing the C324 mini track loader, F60C and F80C rough terrain forklifts, and W50D and W60D compact wheel loaders.

Operational Challenges in Confined Material Handling
Confined urban jobsites, commercial nurseries, agricultural processing facilities, and residential hardscaping operations impose stringent spatial constraints on machinery. Standard full-sized wheel loaders and rough terrain material handlers lack the physical dimensions and turning radius required to traverse standard gates, perimeter fences, and sensitive ground substrates.

Conversely, conventional ultra-compact equipment often lacks the hydraulic flow rates, operating capacity, and structural stability required to unload heavy pallets of pavers, trench through compacted subsoils, or run high-torque continuous attachments. Using undersized equipment results in increased cycle times, excessive ground disturbance from repetitive passes, and accelerated component wear. Operations require high-capacity compact platforms engineered with multi-interface coupling systems, balanced ground pressure distributions, and elevated hydraulic pump capabilities.

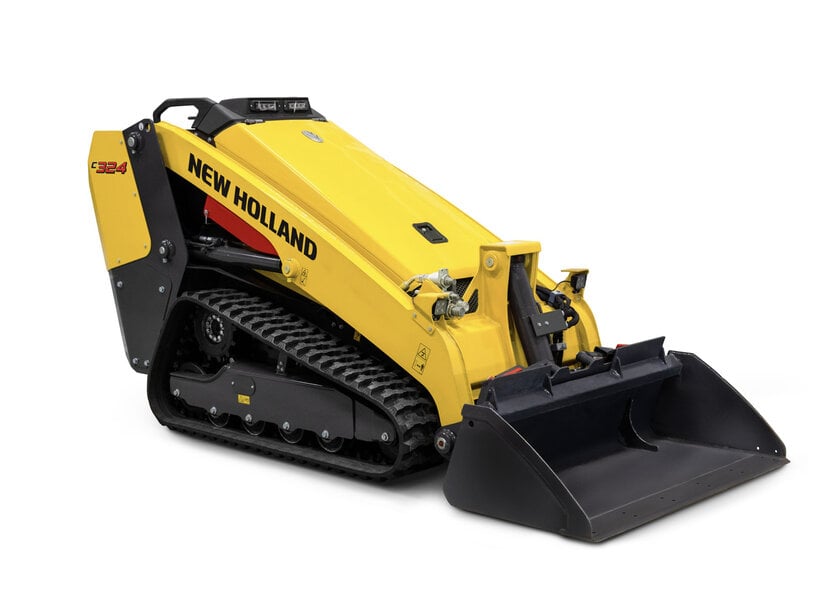

Powertrain and Hydraulic Architecture of the C324 Mini Track Loader
The C324 mini track loader expands the platform capabilities established by the smaller C314 and electric C314X chassis by scaling up physical capacity for commercial-grade duty cycles. The machine is driven by a 43-horsepower engine and provides an operating envelope defined by a 2,400-pound rated operating capacity and 4,800 pounds of maximum lifting capacity.

To adapt to varying ground conditions, the chassis is configured in two distinct track widths: a 47-inch narrow-track profile for accessing restricted spaces and a 51-inch wide-track profile for reduced ground bearing pressure and increased stability on uneven slopes. Transport logistics are simplified because the platform can be hauled using standard half-ton pickup trucks, depending on trailer configuration.

Auxiliary hydraulic performance is split into a 13-gallon-per-minute standard flow circuit and an optional 21-gallon-per-minute high-flow circuit. This secondary flow profile enables continuous operation of demanding hydromechanical attachments such as high-torque tillers, trenchers, high-capacity stump grinders, and rotary brooms. Implement changes are supported by connect-under-pressure hydraulic quick couplers alongside two interface options: a common industry interface plate or a traditional universal skid steer quick-attach mount. Operators control the unit from a rear-standing operator platform configured for 360-degree ground-level visibility.




Heavy-Payload Rough Terrain Logistics: F60C and F80C Forklifts

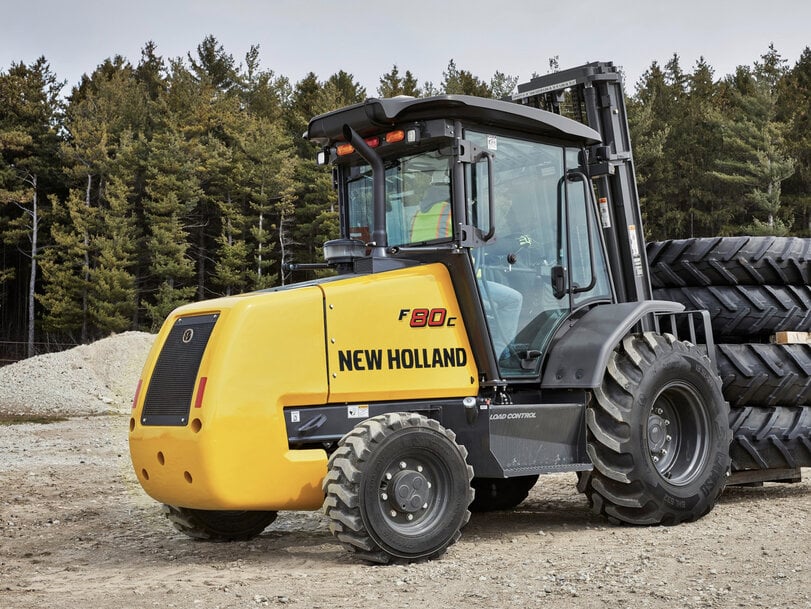

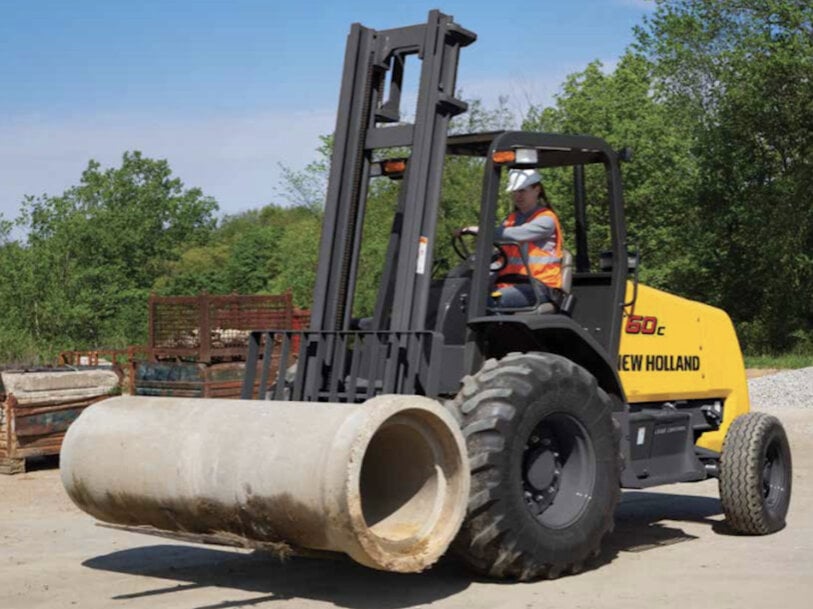

Expanding on the operational baseline of the F50C, the four-wheel-drive F60C and F80C rough terrain forklifts are engineered for pallet handling across unpaved surfaces, commercial turf farms, and construction yards. Both models are powered by a 74-gross-horsepower diesel powertrain and feature a standard 15-foot lifting mast fitted with 48-inch tines.

Load ratings and operating elevations differentiate the two platforms:

To adjust to diverse materials and storage configurations, optional mast assemblies include a 22-foot straight-lift configuration and a 15-foot free-lift mast suitable for low-clearance operations. Hydraulically powered fork positioning is available to eliminate manual tine adjustments. For ground-sensitive turf farms and agricultural operations, high-flotation turf tires distribute load weight to mitigate soil shear and surface compaction. The operator station on the F80C can be optioned with a fully enclosed climate-controlled cab, supplemented by an LED lighting package for low-ambient illumination.

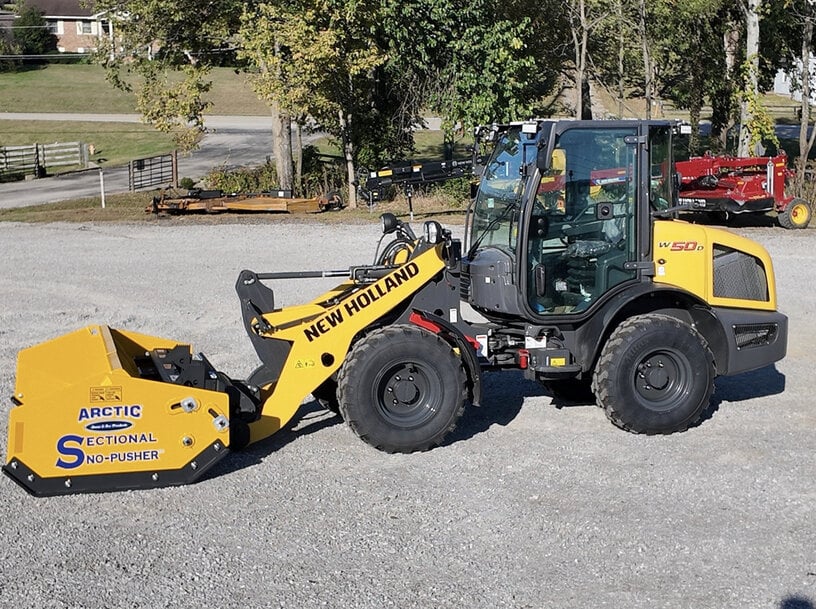

W50D and W60D Compact Wheel Loaders Complete the D-Series
The W50D and W60D models join the existing mid-frame W70D and W80D machines and the larger W100D to complete the D-Series compact wheel loader portfolio. Engineered for rapid truck loading, batch material transfer, and snow management, the W50D and W60D incorporate automated kinematic functions designed to reduce repetitive operator input:

The cab architecture features an integrated pilot-control seat with an attached right-hand console that moves dynamically with the operator. Machine telemetry and system parameters are monitored via an A-post digital display and a standard rearview camera. Quick-coupler options include traditional skid steer interfaces and horizontal-pin coupler systems.

Fleet Telematics and Commercial Exhibition
All five machinery platforms integrate factory-installed telematics hardware offering seven years of complimentary connectivity via the myNewHollandConstruction network. The system transmits continuous digital telematics, including global positioning coordinates, cumulative machine operating hours, diagnostic error codes, maintenance interval triggers, curfew rules, and custom geofencing parameters to assist equipment asset management.

The C324 mini track loader, F80C rough terrain forklift, and W50D compact wheel loader are scheduled for public display at the Equip Exposition trade show from October 20 to 23, 2026, at booths #7068 (indoor) and #7538D (outdoor) in Louisville, Kentucky. Commercial delivery schedules designate that orders for the W50D, W60D, F60C, and F80C are actively open, with forklift deliveries commencing in the fourth quarter of 2026, followed by order openings for the C324 mini track loader in spring 2027.

Additional Context:
This section details technical specifications and competitive benchmarking not included in the original product announcement.

The mini track loader and compact equipment segments are driven by performance benchmarks focused on hydraulic power density and operating capacity relative to machine width. In the high-capacity mini track loader market, the C324 with its 2,400-pound rated operating capacity competes directly against benchmark platforms such as the Bobcat MT100 (1,000-pound rated operating capacity at 35 percent tipping load), the Toro Dingo TX 1000 (1,000-pound rated operating capacity), and the Kubota SCL1000 (1,000-pound rated operating capacity). By reaching a 2,400-pound rated capacity—typically evaluated at 35 percent of tipping load in walk-behind and stand-on equipment under SAE J818 standards—the C324 crosses into payload categories historically served only by mid-sized skid steer loaders, while retaining a 47-to-51-inch machine width.

Similarly, rough terrain forklift comparisons align with established industrial benchmarks, including the Manitou M-Series (such as the M 30-4 and M 40-4) and the JCB 930 and 940 rough terrain platforms. While competitors in the 6,000-to-8,000-pound rough terrain category commonly utilize hydrostatic drive systems, mechanical four-wheel-drive configurations paired with differential locks remain the engineering benchmark for maintaining continuous tractive effort across agricultural field conditions.
