Wirtgen Group News

Wirtgen: Impact crusher and screening plant is in operation at Istanbul Financial Center (IFC)

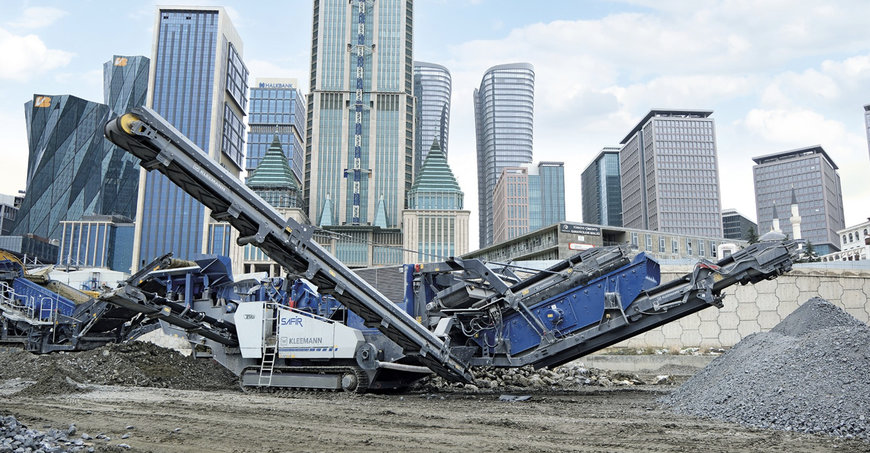

The MOBIREX MR 130i EVO2 impact crusher and MOBISCREEN MSS 802i EVO mobile coarse screening plant are currently in operation in Istanbul's financial center.

Wirtgen: Impact crusher and screening plant is in operation at Istanbul Financial Center (IFC)

Safir Proje is a multifaceted construction company, active in Istanbul in many areas relating to road construction, excavation and demolition work. One of the company’s most spectacular projects at the moment is the excavation work in the centre of Istanbul. Material is being produced for concrete production and road substructures in the middle of the prosperous financial district. Against the backdrop of the country’s tallest bank buildings, the MOBIREX MR 130i EVO2 mobile impact crusher is showing what it can achieve in conjunction with the MOBISCREEN MSS 802i EVO mobile coarse screening plant.

Excavation under challenging conditions
“We will be working here in the centre of Istanbul for about one and a half years,” explains Feyzullah Kahraman, Managing Director of Safir Proje. Some one million tonnes of excavated material from the construction site will be processed during this time. “We have to be especially flexible at this location,” explains the Managing Director, “both in terms of the particular environment and the material.” Feyzullah Kahraman decided to purchase two new flexible and mobile Kleemann plants for this special application. The excavated material is processed very efficiently – directly on site – and some of it is combined with other materials. A visit to the construction site confirms that the businessman is impressed with the machines’ high performance, low consumption and easy handling.


Wirtgen: Impact crusher and screening plant is in operation at Istanbul Financial Center (IFC)

“The impact crusher meets the requirements for the cubic material very well. I've never achieved this quality before,” Feyzullah Kahraman, Managing Director of Safir Proje.

Adapting to changing conditions
Depending on the weather, the 0-500/600 mm feed material is at times wet and muddy, at other times dusty and dry. Kleemann had the ideal solution for these changing conditions. In wet weather, the MOBIREX MR 130i EVO2 impact crusher is preceded by the MOBISCREEN MSS 802i EVO coarse screening plant. It loosens the sludgy material, screens it coarsely and prepares it for feeding to the impact crusher. The first step is not required in dry conditions and the excavated material can then go directly to the impact crusher.

“It has been shown that this combination produces the very best results,” says Feyzullah Kahraman. Both in terms of product quality and cost-effectiveness. “We produce grain sizes of 0/38 and 0/63 and, depending on the end product, can achieve an hourly output of 200 to 300 tonnes with a consumption of 24 litres. That's impressive,” he reports happily. The managing director is not only extremely satisfied with the quantity, but also with the quality of the result: “The impact crusher meets the requirements for the cubic material very well. I've never achieved this quality before.”

The fact that only one machine needs to be refuelled in dry conditions when the impact crusher is running without pre-screening is very cost-effective. It results in a noticeable reduction in operating costs. And the coarse screening plant can then easily be used for other projects. With its proportionally controlled travelling gear, it can be moved quickly and easily. Set-up times are short, partly because the side discharge conveyors are folded instead of dismantled.

Very pleased with service and handling
Feyzullah Kahraman was in close contact with Kleemann in order to achieve this perfect set-up. During a visit to the Göppingen factory, he and his contact from Wirtgen Ankara had an opportunity to experience the solution for themselves. “You can tell that there are professionals at work there who know exactly what’s important in aggregate processing,” says Feyzullah Kahraman. The state-of-the-art, perfectly structured production chain, in-depth consultation and on-site demonstrations quickly won over the businessman.


Wirtgen: Impact crusher and screening plant is in operation at Istanbul Financial Center (IFC)
A happy Safir Proje team: Fatih Aksoy (Foreman), Feyzullah Kahraman (Owner and Managing director), Kahraman Karslı (Operator)

Quality always pays off
Today, operations at the Istanbul site are running smoothly. “It’s also great that all our employees enjoy working with the plant,” says Feyzullah Kahraman. The favourable ergonomics and easy access to all relevant parts for service and maintenance make work much easier. “Thanks to SPECTIVE, handling the impact crusher is very straightforward and clear. Operation is so intuitive that hardly any familiarisation time was required. Of course, my employees are also quite proud to be able to work with a Kleemann,” adds the business owner.

www.wirtgen-group.com
